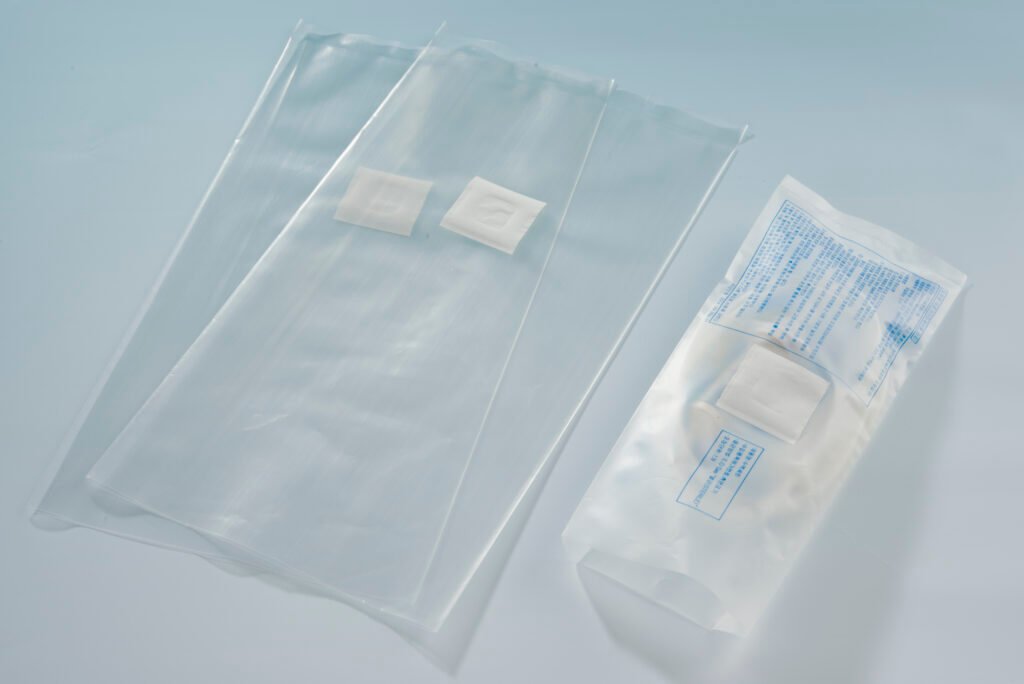

PE Pouch & Dialysis Paper Patched-PE Pouch
Product Information
| Parameter | Details |
|---|---|
| Material | Medical-grade PE material(LDPE, HDPE, LLDPE) |
| Color | Tranparent or custom colors |
| Thickness | Custom |
| Size | Custom |
| Printing method | Flexographic printing |
| Printing | custom (color: up to 4) |
| Seal Type | Heat sealed |
| Sterilization method | EO, Irradiation, Gamma-ray |
| Test Report | Biocompatibility test (based on ISO10993) accelerat aging test, vaccum leakage test, seal peeling test (based on ASTM F 1980-07) |
| Shelf Life | 24 months from manufacture date |
Features
- Strong heat sealing and clean appearance
- Dialysis Paper-Patched PE Pouch laminated with medical dialysis paper, allowing effective EO gas sterilization while maintaining a strong bacterial barrier
- Transparent PE film: easy to identify internal product
- Moisture-proof: Standard PE Pouch ideal for non-sterile and secondary medical packaging
- Stretch-resistant: Suitable for long-distance transportation. The bag body is not prone to damage, thus preventing the internal products from being contaminated
- Low-temperature performance: brittleness is not likely to occur under freezing conditions.
Applications
- Suitable for syringes, tubing, catheters, infusion sets etc low-risk sterile medical consumables
- Primary packaging and secondary packaging
Our Custom Capability
- Size: length between 30~650mm, width between 30~450mm (tolerance: ±2mm)
- Thickness: single layer 0.03~0.25mm (tolerance: ±3μm)
- Bag color
- Printing design
- Tear line shape
- Light-proof pouch
- Irradiable bags/Electron beam sterilization bag
- …… Other custom options according to custoner’s specific requirements
Medical Waste Biohazard Bag
Product information
| Parameter | Details |
|---|---|
| Material | LDPE / HDPE / PP |
| Color | Yellow (infectious waste), Red (biohazard), Black (general medical waste) |
| Thickness | 30–100 microns (customizable) |
| Size | 300×400mm to 950×1250mm (custom sizes available) |
| Tolerable temperature | PE–121℃, PP–135℃ |
| Printing | Biohazard symbol + Warning text, up to 3 colors flexographic printing |
| Seal Type | Flat / Drawstring / Self adhesive |
| Certification | ISO 9001, ISO 13485, ISO 11607 compliant |
| Shelf Life | 36 months from manufacture date |
Key Features

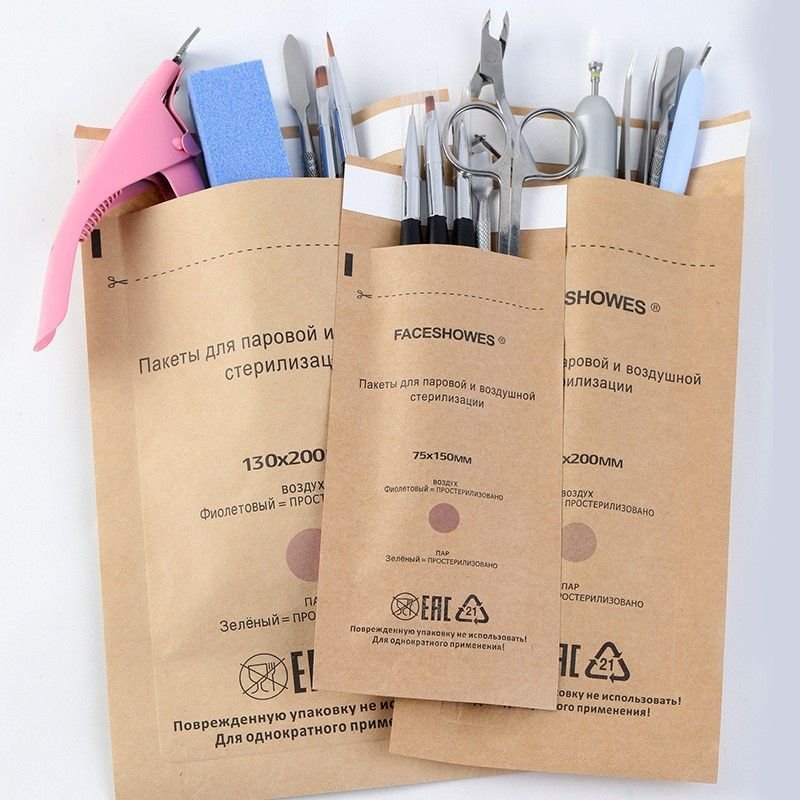

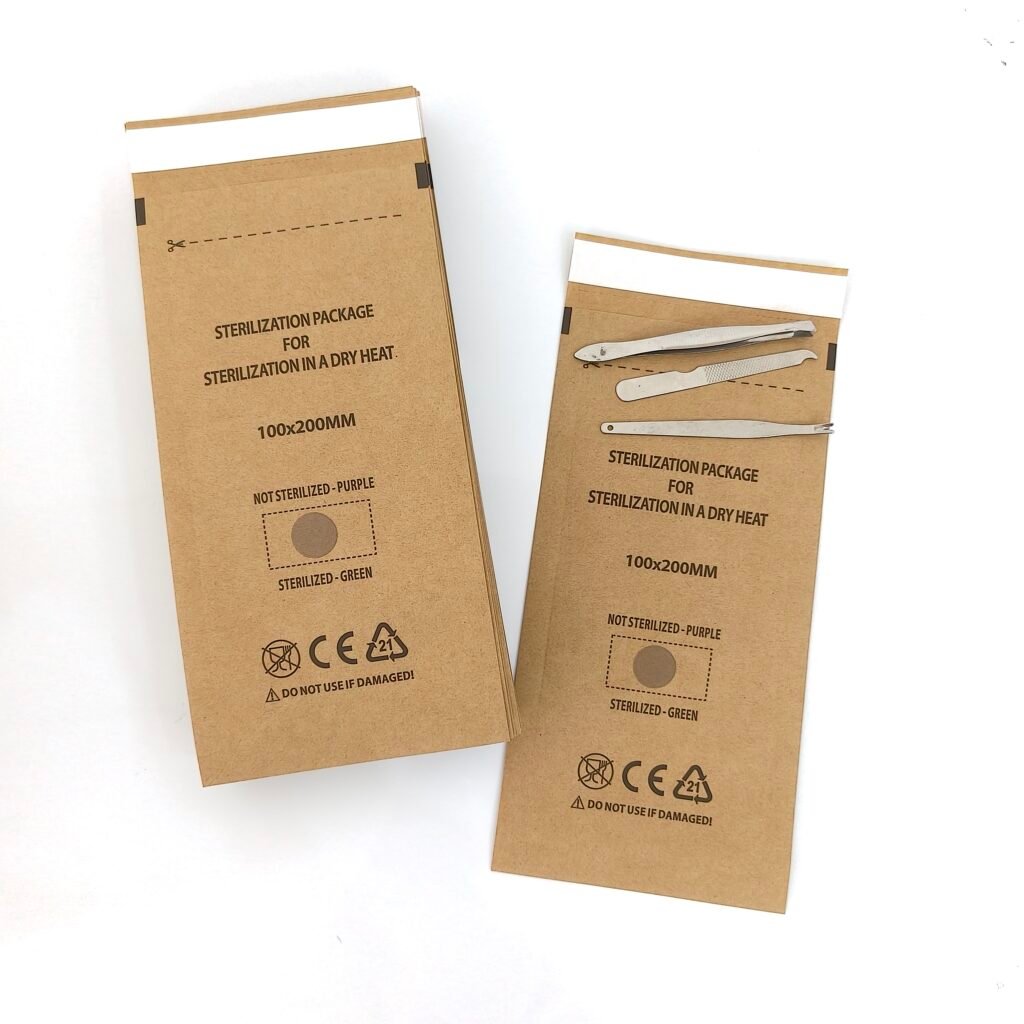

Kraft Paper Sterilization Pouch
The Kraft Sterilization Pouch is constructed from 100% pure 60g kraft paper. This heavy-duty kraft paper provides excellent tear and puncture resistance, making it ideal for packaging heavy, sharp, or irregularly shaped surgical instruments.
Product information
- Material: 60g Pure Kraft Paper
- High temperature resistant–from 160℃~220℃
- Dry Heat, Steam and EO sterilization compatible
- Shelf life: 3 years
Custom Options
- Size
- Logo printing
- Paper color
- Packaging method
Key Features
- Excellent tear and puncture resistance
- Ideal for manicure or tattoo instruments
- Self adhesive–easy and hygienic to use
- Environmentally friendly
Size Specifications
| ITEM NO | SIZES (mm) | Actual Inner Size (mm) | PACK (PCS/CARTON) |
|---|---|---|---|
| KF-75180 | 75×180 | 60*153 | 10000 |
| KF-100230 | 100×230 | 80*200 | 8000 |
| KF-130230 | 130×230 | 110*200 | 8000 |

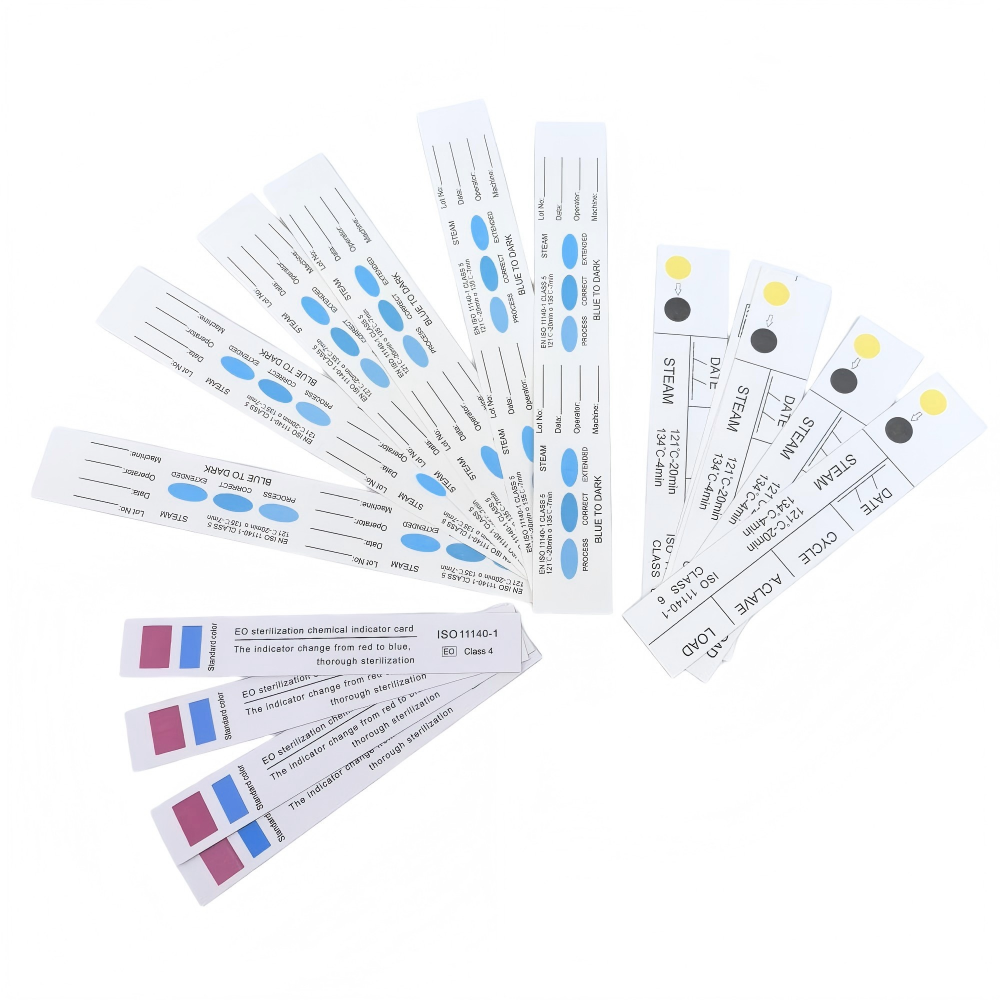

Chemical Indicator Strips
Product information
- Material: Ink made from chemical substances, colorants and their additives+medical special card paper.
- Application: hospitals, pharmacies, and dental clinics, pet hospitals, food processing, beverage,dairy processing, health products, Laboratory, medical research institute,Health prevention and disinfection service institution etc.
- Complies with ISO 11140-1, EN 867-4 and ISO 11140-4
Sterilization Process
- 1. Place the plasma sterilization indicator strip at the center of the standard test package or the item itself, with the end of the card marked with the indicator facing down. Put it in the middle of the item package or in the area that is the most difficult to sterilize.
- 2. According to the routine of sterilization operations, after a sterilization cycle under a temperature of 50°C – 60°C, with a concentration of 60% hydrogen peroxide solution at 2.3mg/L, the color block of the indicator card changes from green to yellow, which indicates that the sterilization package has undergone sterilization treatment; if the color change of the indicator card is uneven or there is no color change, it indicates that this package has not undergone sterilization treatment.
Notes for Attention
- The indicator strips must not come into contact with acidic or alkaline substances during storage and use.
- Avoid moisture (relative humidity should be less than 50%), store away from light, and protect from ultraviolet fluorescent lamps and sunlight.
- Store in a dark place, at room temperature, with ventilation, in a dry environment, and sealed.

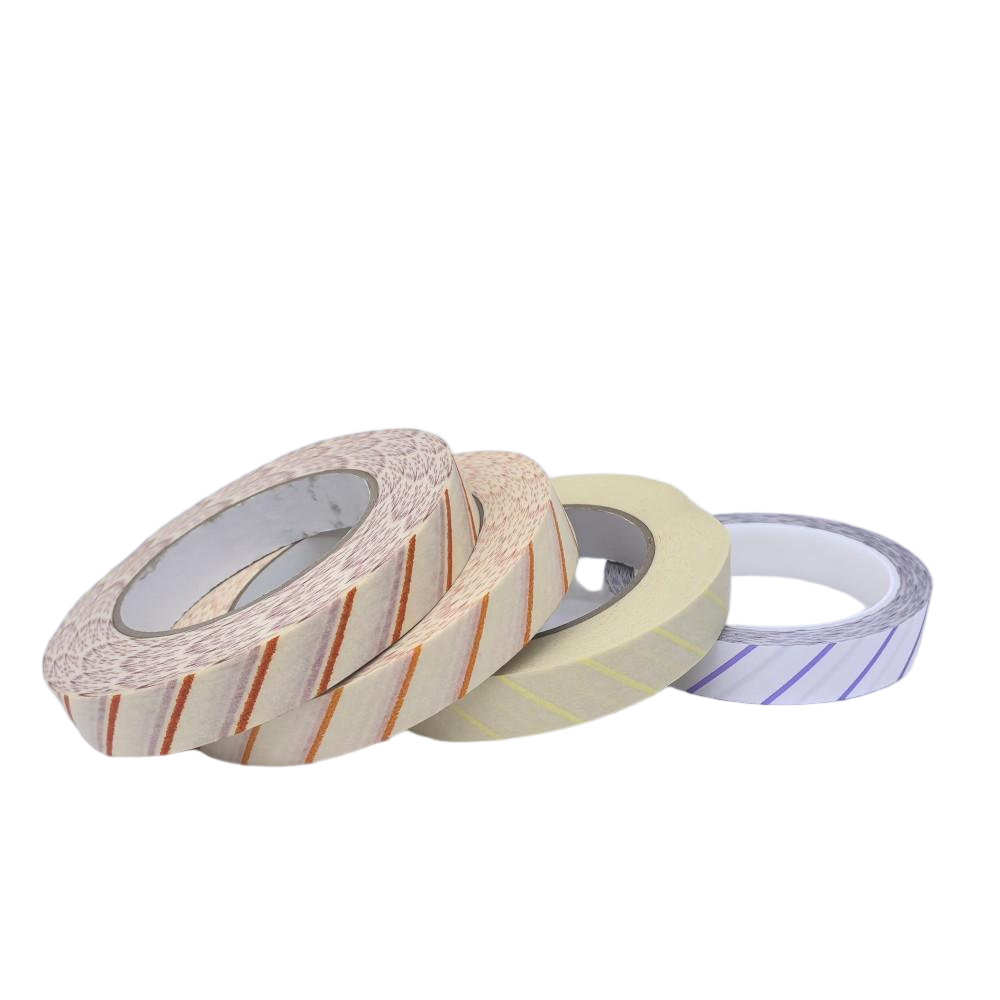

Chemical Indicator Tapes
Product Information
Our factory chemical indicator tapes are the ideal and safe solution for closing all wrapping materials. They are constructed from pressure semi-crepe paper which on one side is the adhesive glue and the other side is indicator strip are printed. The process indicator ink shows an easy and accurate color change and indicates if the pack has been processed.
Sterilization color change
EO–from red to green, STEAM–from beige to black, Plasma–from blue to red.
Key Features
- Pressure-sensitive adhesive, with excellent adhesion and good sealing and packaging function;
- The waterproof layer does not tend to loosen or break when heated;
- The water-reactive fuel is not easily damaged when exposed to water, and its color does not fade easily after sterilization;
- Remove the packaging from the sterilizer without leaving any residue.
Size Specifications
| DESCRIPTION | ITEM NO | SIZE | PACK (PCS/CTN) |
|---|---|---|---|
| Steam Indicator Tape | ST-1250 | 12mm×50m | 76rolls/ctn |
| Steam Indicator Tape | ST-1950 | 19mm×50m | 48rolls/ctn |
| Steam Indicator Tape | ST-2550 | 25mm×50m | 36rolls/ctn |
| EtO Indicator Tape | ET-1250 | 12mm×50m | 76rolls/ctn |
| EtO Indicator Tape | ET-1950 | 19mm×50m | 48rolls/ctn |
| EtO Indicator Tape | ET-2550 | 25mm×50m | 36rolls/ctn |
| Plasma Indicator Tape | PT-1250 | 12mm×50m | 76rolls/ctn |
| Plasma Indicator Tape | PT-1950 | 19mm×50m | 48rolls/ctn |
| Plasma Indicator Tape | PT-2550 | 25mm×50m | 36rolls/ctn |

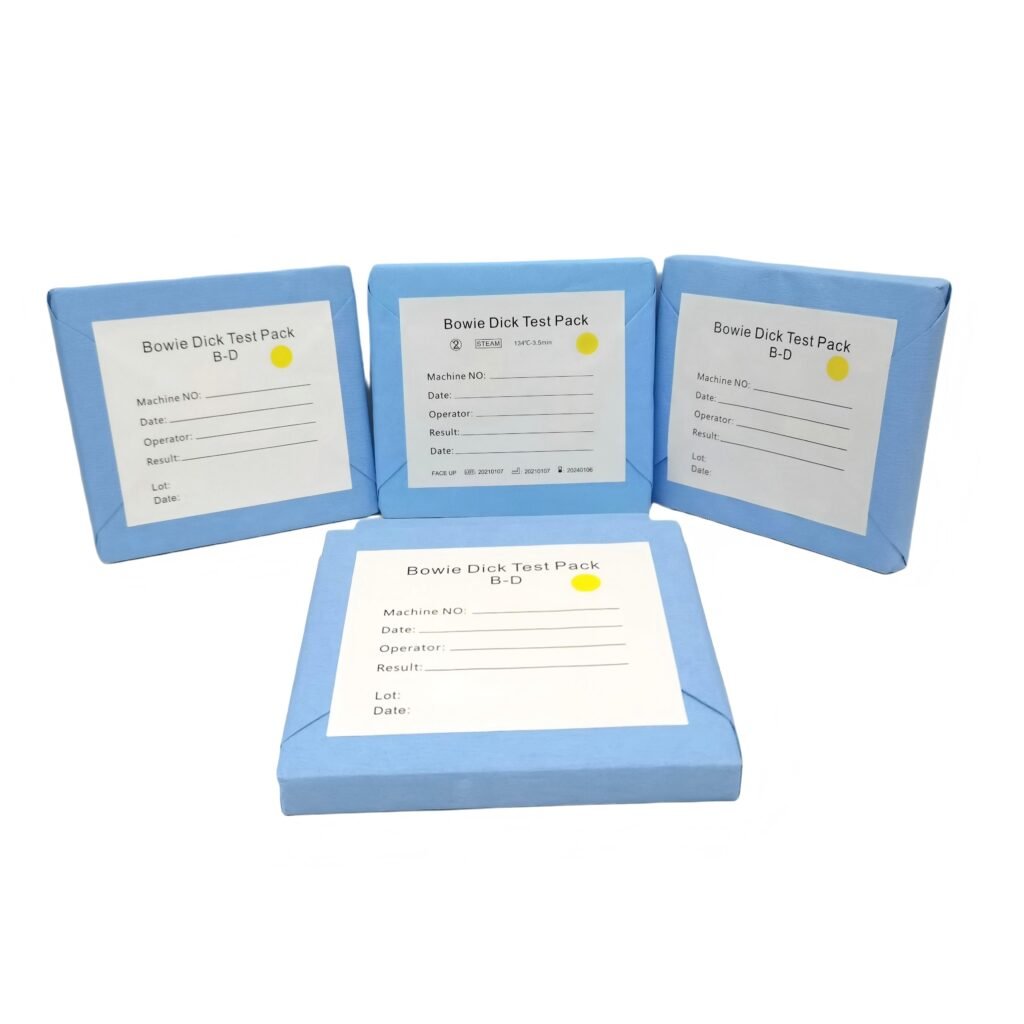

Bowie-Dick Test Pack / Paper
Product information
- Material: B-D test paper, laminated sheets, laminated sheets with backing, foam sheets, and a sheet of cellophane wrapped around it, which is then sealed and packaged with an instruction label.
- Usage: determining the effect after the installation and commissioning of new sterilizers, and measuring the performance after the maintenance of sterilizers.
- Application: Suitable for Medical, Dental, Eye Center, Laboratory, Surgical Center, Pharmaceutical, and Pet Hospital, Biotechnology industry, Biomedical field; zoology research institute; biological laboratory.
- Pre-assembled disposable Bowie-Dick test pack for detection of defects in the sterilization process
- Easy-to-read test sheet with detailed instructions for use and interpretations of results
- Complies with ISO 11140-1, EN 867-4 and ISO 11140-4
Sterilization Process
The pattern on the B-D test paper will turn into a uniform dark brown to black when the sterilizer operates at 132℃ ~134℃ for 3.5 minutes. If the cold air is not completely expelled, the cold air inside the package will affect the penetration of the steam, resulting in a lighter-colored area in the center of the B-D test paper that is different from the surrounding areas.
Notes for Attention
- The test patterns inside the BD test kit must not come into contact with acidic or alkaline substances during storage and use.
- Avoid moisture (relative humidity should be less than 50%), store away from light, and protect from ultraviolet fluorescent lamps and sunlight.
- The test shall be conducted under steam conditions at 132~134℃ for no more than 4 minutes. The test shall be conducted in an empty autoclave before the first sterilization of the day.
- This product cannot be used to test the effectiveness of pressure steam sterilization.
